Description
Metal Bench Mount Ground CP4070

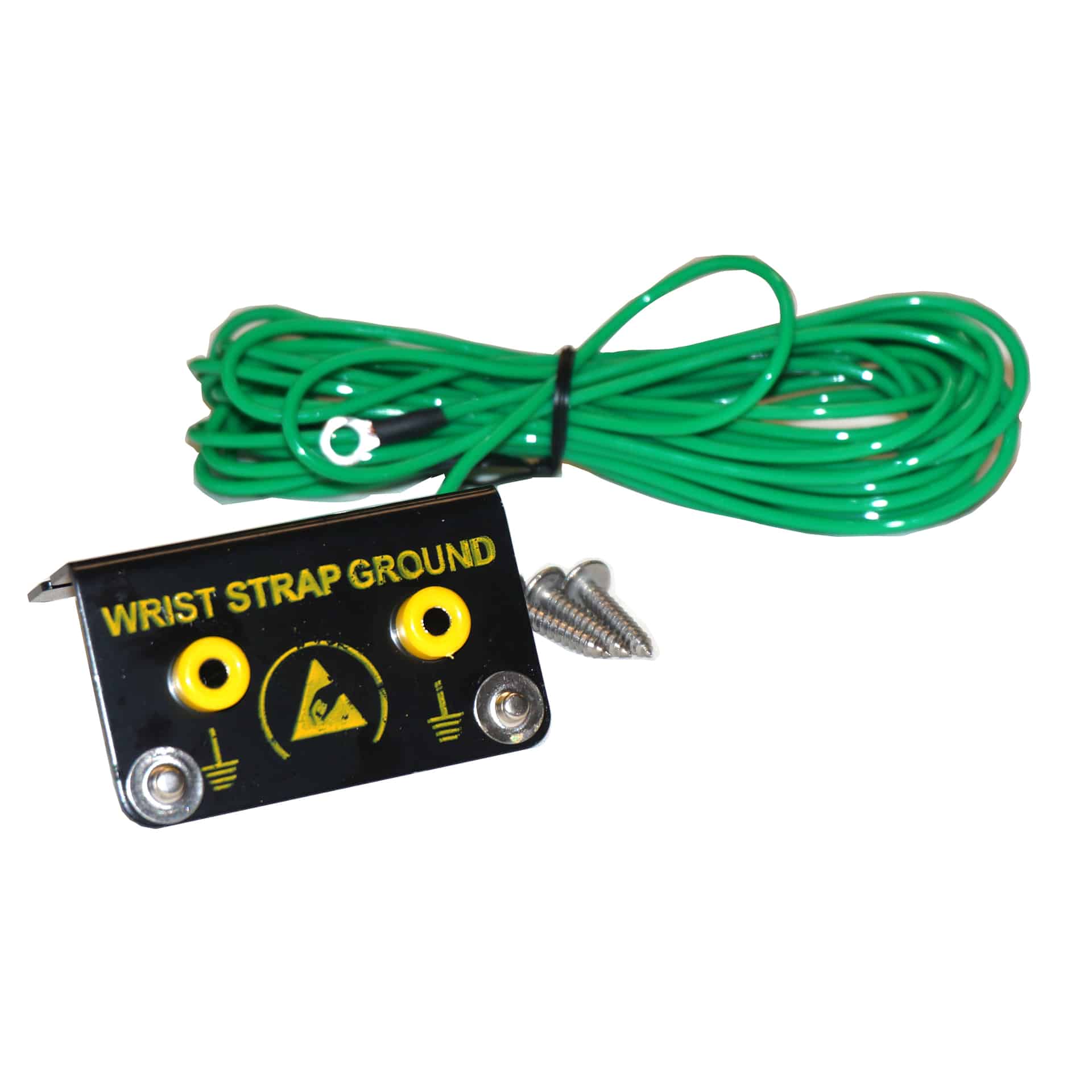

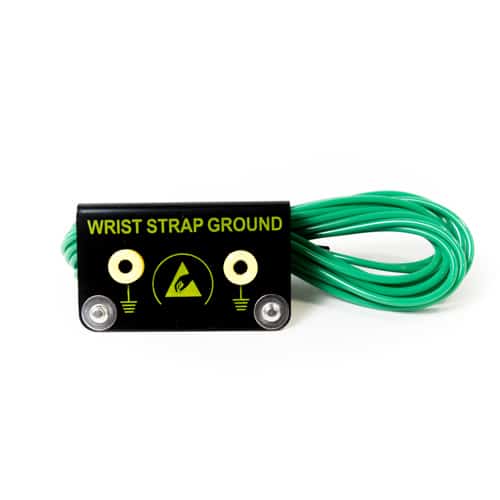

The CP4070 Metal Bench Mount Common Point Ground (CPT) offers the common ground point required by ANSI/ESD S-6.1 and ANSI/ESD-S20.20. The metal bracket mounts under the front edge of workstation to save valuable space. Includes a 15? long ground cable with #10 ring terminal connector. Two banana jack receptacles for secure ground connections. Two parking studs (4mm) for storing cords when not in use.
Meets or exceeds requirements of ANSI ESD-S20.20 and ANSI/ESD S-6.1
Benefits & Features of the Transforming Technologies CP4070 Metal Bench Mount Common Point Ground (CPT):
- Dual bench ground mount for single wire wrist straps
- Mounts under workbench and can ground two operators
- Made of heavy duty 0.05″ anodized aluminum with 15′ ground wire
Specifications of the Transforming Technologies CP4070 Metal Bench Mount Common Point Ground (CPT):
- Cord Length: 15′
- Ground terminal: #10 ring type
- Wire insulation: PU/PVC
- Resistor: 0 Meg ohm
- Color: Green, black
