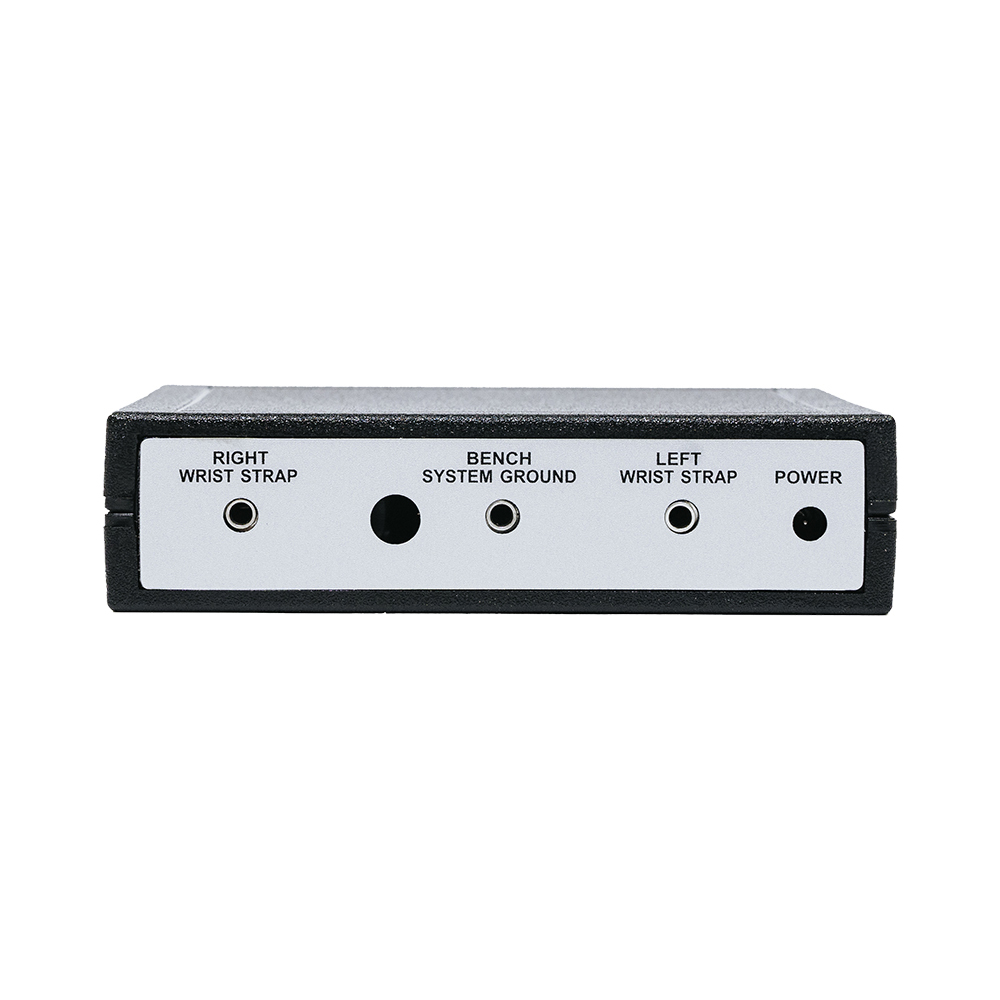

CM420 – Single Wire Continuous Monitor, Two Operators, One Workstation Mat

Buy Now

Item #: CM420

  • Monitors Two Operators and One Workstation Mat
  • Easy To Use: Simply Plug In Wrist Strap
  • Audible and Visual Alarms
  • Factory Calibrated with Certificate – Does Not Require Recalibration
    • 0 $
Quantity:

Description

A single wire constant monitor for two wrist straps and one worksurface.

The CM420, single wire constant monitor continuously checks two operators wrist straps and a workstation ground and alarms if there is a fault. Continuously verifying the integrity of the ground system is critical to an effective ESD protection program and eliminates the time-consuming task of testing wrist straps before each shift. The systems are compatible with most single wire wrist straps. This is the simplest, and most cost-effective way to ensure a wrist strap is continually working. An audible alarm and light will signal a failure.

Calibration
The CM420 constant monitors are factory calibrated and are designed to be adjustment free. Annual calibration is not necessary. If a quality program requires testing, verification tools that simulate a functional and non-functional wrist strap are available to verify that the monitor is functional. It is recommended to verify proper working order with the CM420PV  periodic verification unit at least once per year.

Additional information

Weight1 lbs
Dimensions2.4 x 1 x 2.3 in
Type

Single Wire

Capabilties

Monitors 2 Wrist Straps and 1 Worksurface

Voltage

120V AC

We have resellers for this product but we have not posted website referal links at this time. You can contact us phone or by adding this item to your quote using the "Add to Quote" Button above. We will get you the information you need. Thanks!
