PTEC IN5120 “In Tool” ESD Ionizing Blower

Buy Now

Item #: IN5120

  • Remove Static Charges Quickly and Efficiently
  • Perfect for “In Tool” Applications or Single Station Use
  • Small Footprint – Does Not Take Up Space
  • Variable Fan Speed
  • Standard Products Works on All Power Circuits: 100-240v
    • 0 $
Quantity:

Description

The Ptecâ„¢ “In Tool” small Ionizer is versatile table-top or “in-tool” solution for static issues.

The IN5120 ionizing blower combines exceptionally fast static decay capability with excellent balance stability, all in a small footprint. Designed to protect most static sensitive devices, the IN5120 uses a specialized piezoceramic technology that makes all the Ptecâ„¢ ionizers so reliable.

About Ptecâ„¢ Technology
A specialized piezoelectric high voltage transformer makes Ptecâ„¢ ionizers among the most reliable ionizers manufactured. Small, lightweight and stable, Ptecâ„¢ products are designed to remain in balance and to alarm when the HV output affects performance. The model IN5110 benchtop static eliminator produces a 68KHz AC output of approximately 2200V and a continuous stream of balanced air ions. Ionizers that use Ptecâ„¢ technology do not require calibration and only minimal maintenance.

Features

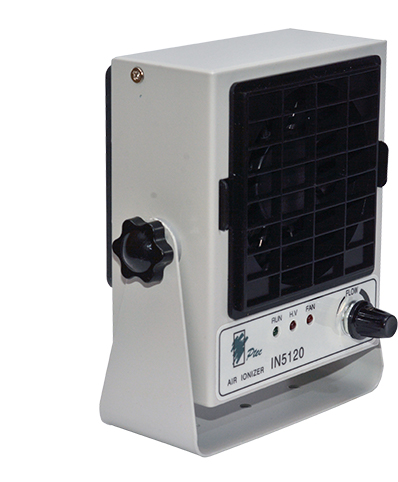

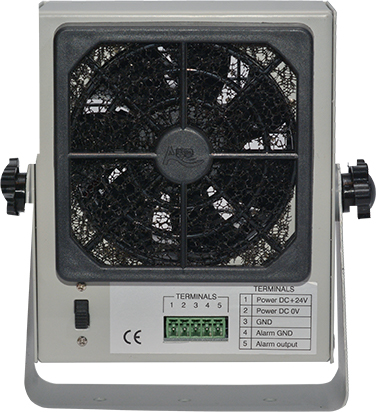

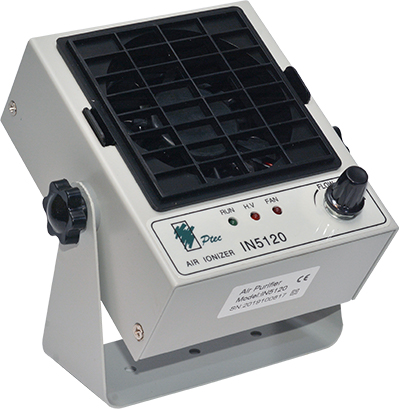

On the front panel of the IN5120 are two LEDs. The green LED indicates that power is applied to the unit. The red LED is illuminated when an alarm condition occurs. A variable fan speed control, on-off switch, and removable finger guard are also on the front panel.The rear panel of the ionizer has the 24 VDC power input connector and a grounding point.

  • Physically small and light.
  • Rapidly decays static charges.
  • Excellent ion balance and ionization performance.
  • Ionization (green) and HV alarm (red) lights.
  • No periodic adjustments.
  • Durable, replaceable tungsten alloy emitter points.
  • Removable front grill. Adjustable air volume.

Power Requirements
The IN5120 can work on all power circuits, from 100-240volts, without any adjustments. This means the standard ionizer can be used in many different countries and power circuits and performance will not be affected.

Verification and Calibration:
The IN5120 ionizer comes factory calibrated and with a calibration certificate.  Ionizer performance can be tested and verified with a charge plate monitor. Important tests to perform are positive and negative decay times and ion balance. It is recommended to test ionizer performance at least 1 per year.

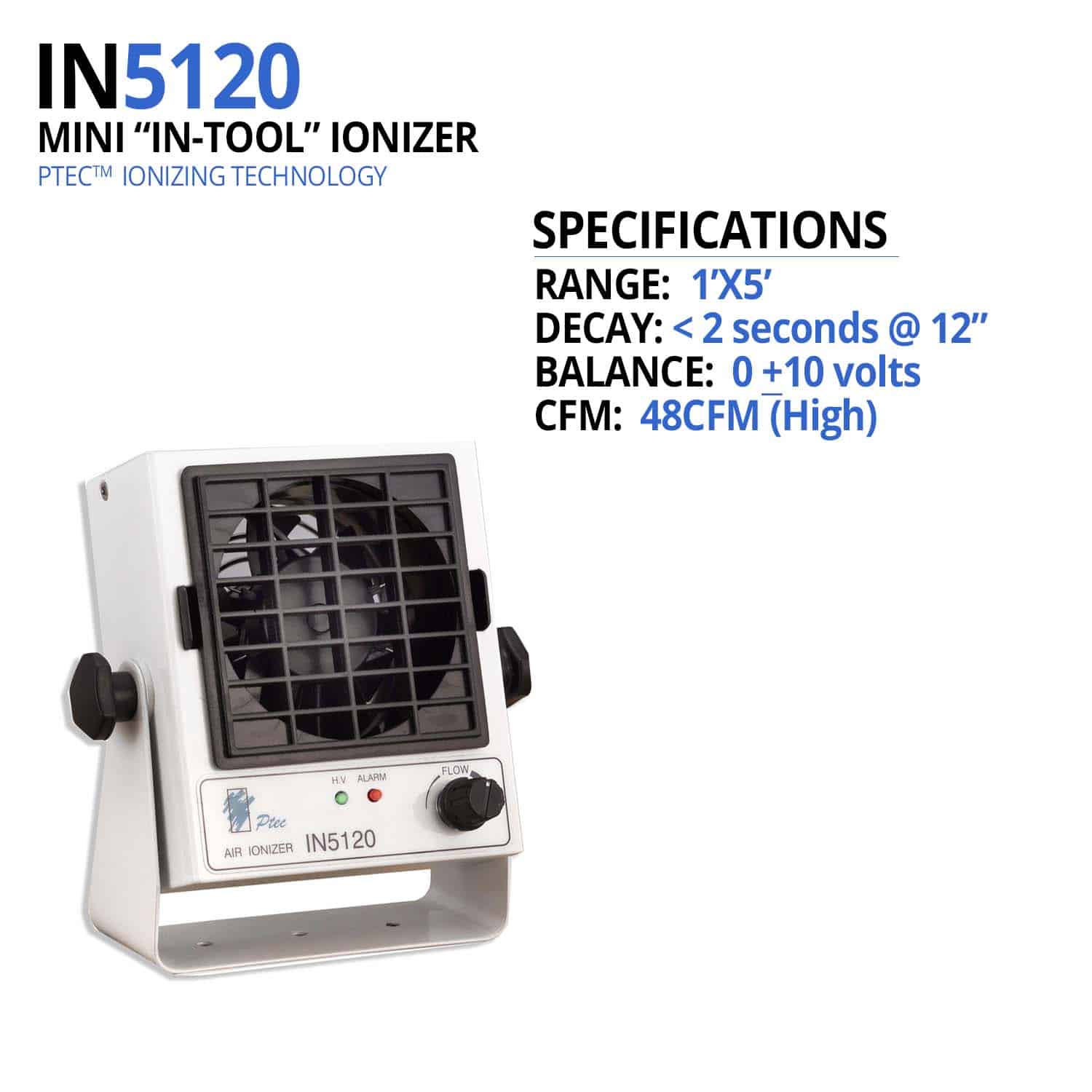

Additional information

Weight3 lbs
Dimensions12 x 10 x 10 in
Coverage

1ft. x 1ft. area

Decay

Less Than 8secs at 6in.

Balance

0 +5 volts

Power Input

120 VAC 60 Hz
