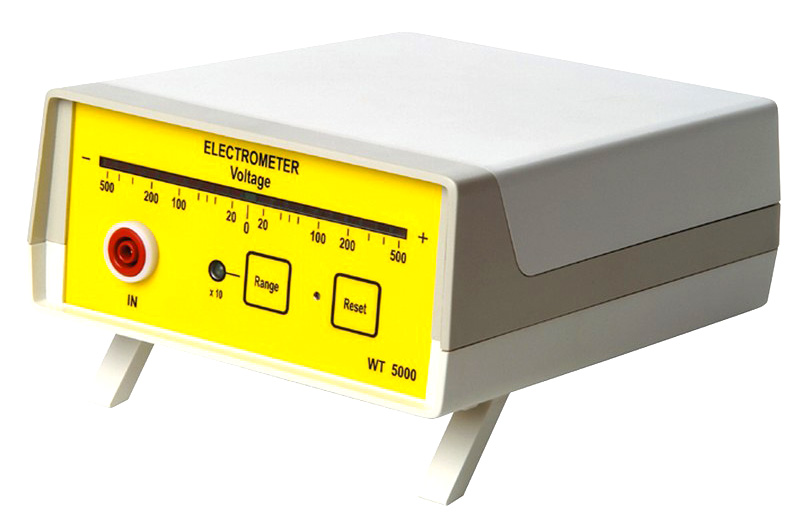

Warmbier Walking Test Kit WT5000 Electrometer

Buy Now

Item #: 7100.WT5000.B

  • Tests ESD Floor Compliance per ANSI/ESD STM 97.2. and IEC 61340-4-5.
  • Measures Voltage Generated on the Body While Walking
  • Body Voltage is Displayed on Meter as well as Live Via a Computer
  • Easy to use Analysis Software to Save, Measure, Print and Export Tests
    • 0 $
Quantity:

Description

Test and graph the performance of ESD floors in combination with a person per ANSI/ESD STM 97.2. and IEC Standard 61340-4-5.

The WT5000 Walking Test Kit has been designed to perform a voltage measurement of floor materials and footwear in combination with a person according to ANSI/ESD STM 97.2. and IEC Standard 61340-4-5. This test will evaluate the performance of the floor / footwear system. This test is of special importance when the floor / footwear system is used as a primary means for grounding personnel.

Product Video

Analysis Software

The WT5000 is supplied with easy to use analysis software, you can save, load, zoom, measure, print and export test results.  The WT5000 can display live tests measurements via a Windows PC and via the LEDs on the front panel of the instrument.

WT5000 Software





Specifications

  • Test range: ± 5000 volts
  • Accuracy: 5% of measured value
  • Input impedance: > 10^14 Ohm
  • Input capacity: < 5 pF
  • Response time: <= 10 ms
  • Display: Logarithmic LED-display ± 500 V, changeable to ± 5000 V with Peak Hold function
  • Output: Analog ±5V DC for each range
  • Power supply: Rechargeable batteries
  • Complies with IEC 61340-4-5

The Walking Test

The operator walks on the floor section in a six-step pattern and comes to rest with both feet on the floor specimen in front of the EFM meter. The step pattern requires forward and backward steps and a cross over step:walking test pattern for esd tests

Perform the test three times and the WT5000 will measure the results.  Save each test for recording purposed.

Supplied with:

WT5000 Electrometer, A/D-converter with software Digilloscope, rechargeable batteries, power supply, handheld electrode, connecting cables, conductive carrying case, user’s manual, calibration certificate



Additional information

Type
Capabilties
Voltage

We have resellers for this product but we have not posted website referal links at this time. You can contact us phone or by adding this item to your quote using the "Add to Quote" Button above. We will get you the information you need. Thanks!
