Warmbier PGT120.COM Combination Tester With Data Collection

Buy Now

Item #: 7100.PGT120.COM

  • A “Smart” ESD Combo tester that integrates with a computer to record test results into a database
  • Can work with many other devices such as door/barrier system, label printer, RFID and more
  • Independently test footwear & wrist strap grounding products
  • Automatically test footwear in hands-free mode
  • 100volt test circuit (by default) which is the same voltage used for qualification tests.


A complete test station for ESD footwear and wrist straps with data collection

The PGT120.COM personnel grounding tester takes quick and accurate resistance measurements of the ESD grounding products with the ability to integrate with a computer to store test data. Access to this information is valuable to your quality program.

The unit operates with 3 independent measuring circuits for the left shoe, the right shoe and the wrist strap. The shoes can even be measured in a hands free mode which means that the staff members are tested automatically when standing on the plate. PGT120.COM can be connected to an automatic door opening system which allows entry with only passing results.

The PGT120.COM is supplied complete with footwear testing electrode, flexible cord, transformer with power cord and calibration protocol. Recommended calibration interval is 24 month Corresponding wall mounting plate, and electrode anti-fatigue mat is sold separately.

Data Collection

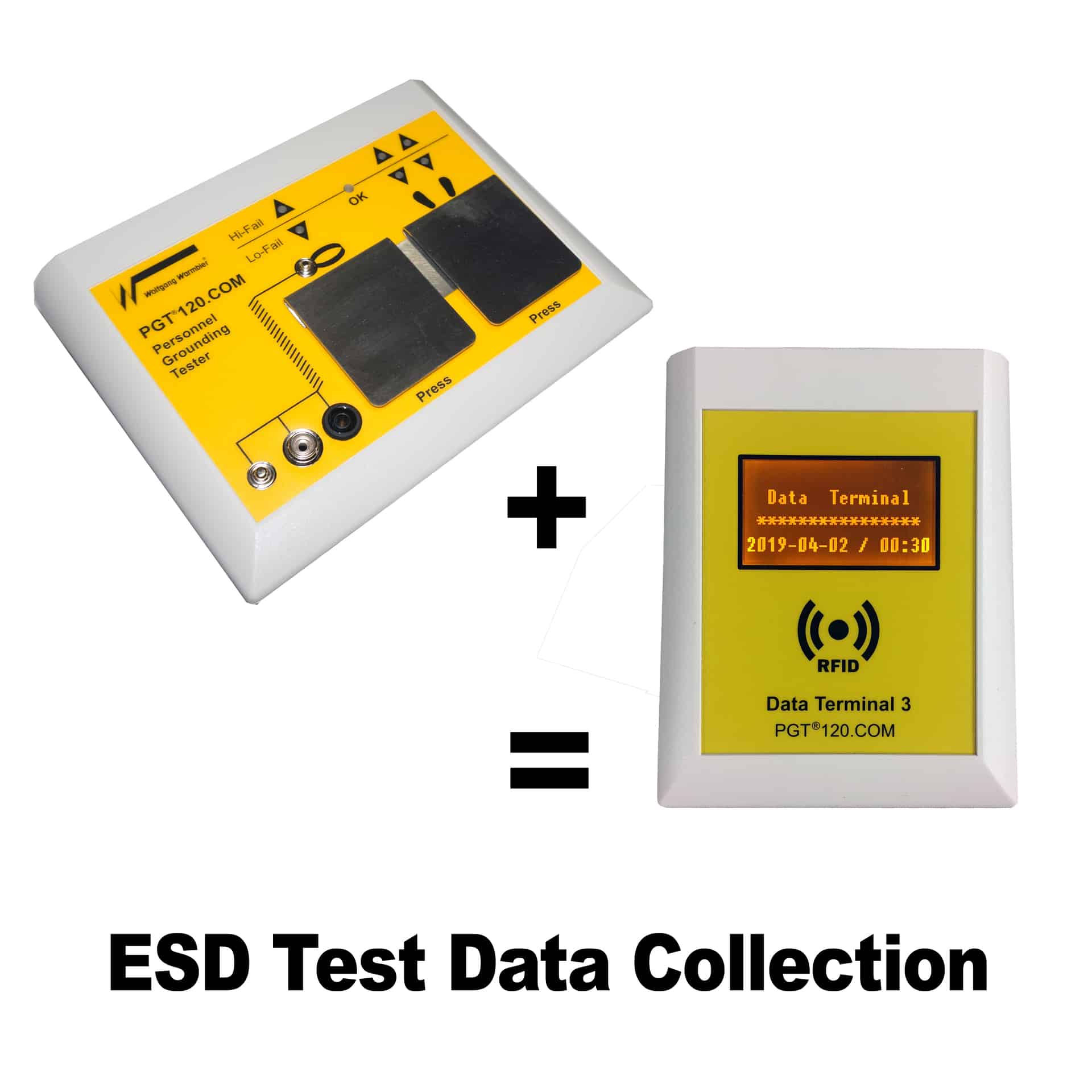

Pair the unit with the PGT120.COM Data Terminal and you receive real-time ESD testing with personnel identification, access control and central data maintenance. Also connect to a number of accessories such as a label printer, bar code scanner, RFID, database server and much more.

  • Ready to integrate into existing infrastructure
  • Multiple PGT120.COM stations can be networked
  • Existing identity cards or time attendance cards can be re-used
  • Open database interface
  • Measurement data is ready to process after a few seconds
  • Various databases can be used
  •  Combination with existing access systems is possible
  • Secure network communication

The following data is recorded in ASCII format:

  • Value Footwear in Series: Value in kOhm
  • Value Wrist Strap System: Value in kOhm
  • Value of Left Foot: Value in kOhm
  • Value of Right Foot: Value in kOhm
  • Test OK: OK
  • Test Failed: Error no.

Product Videos

PGT120 Hands-Free Testing

PGT120 With Turnstyle

Additional information


ESD Personal Ground Tester


Test both ESD Footwear and Wrist Strap Coil Cords

Test Voltage

100 V (Default), 50 V or 30 V
