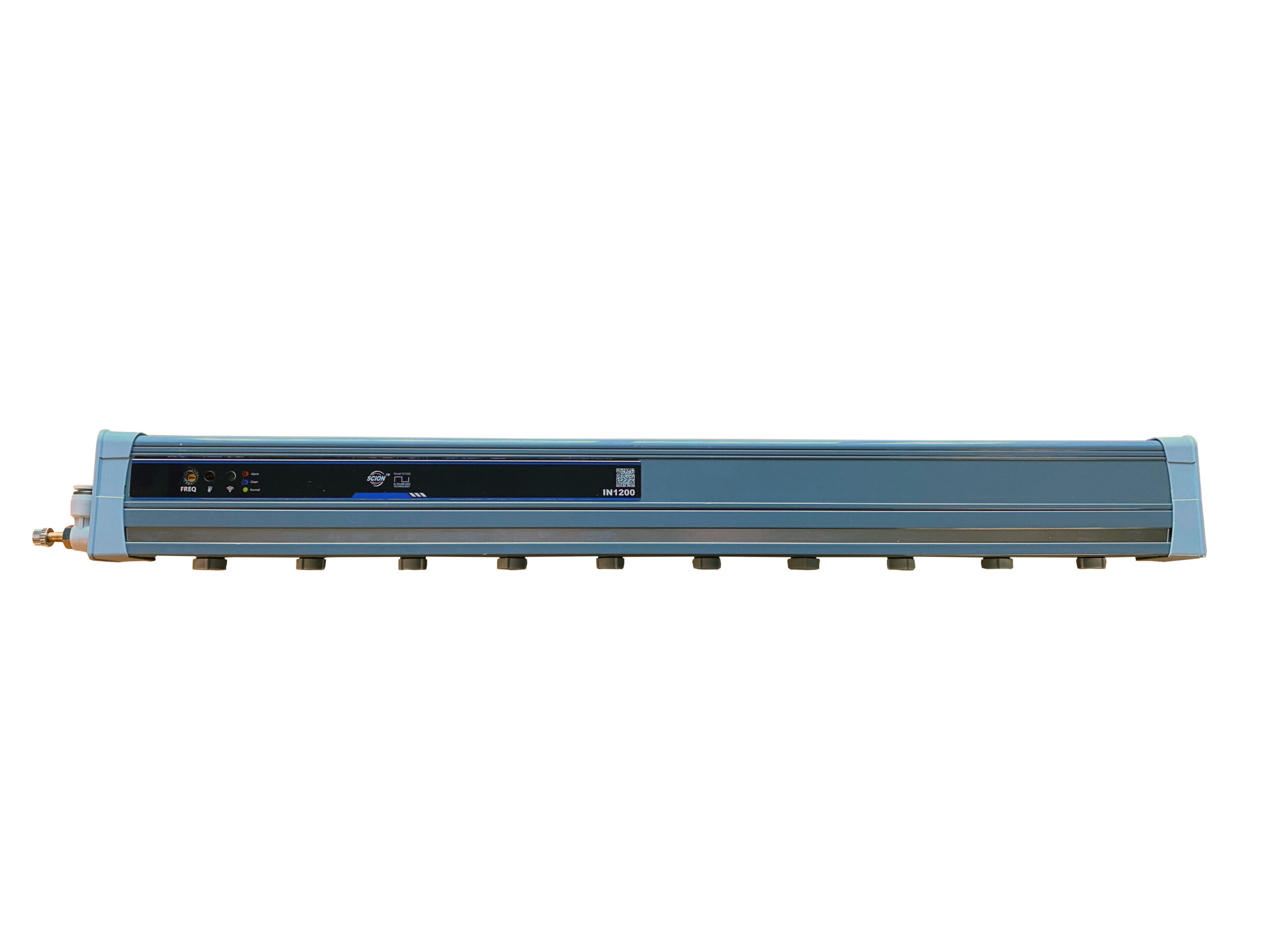

SCION IN1200 Series ESD Ion Bars

Buy Now

Item #: IN1200 Series

  • Provides uniform static elimination at high speeds.
  • AC Square Wave Technology  – AC stability with DC control
  • Quickly and efficiently controls static in mini-environments, laminar flow hoods and wide-area workstation applications.
  • It is a highly effective tool in electronics, plastics, chemicals, printing, textile, optical and other industries.
  • Available in 12in, 22in., 44in. or 64in. lengths.
Clear
Quantity:
Categories: ,

Description

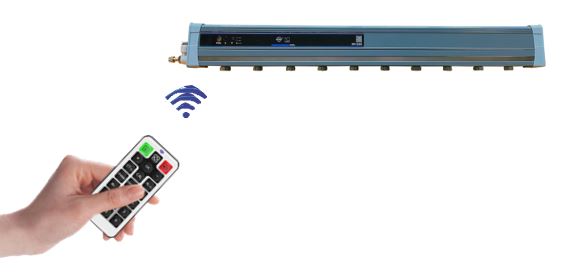

Remote controlled ionizing bar that quickly eliminates static charge

The SCION IN1200 ionizing bar is an effective tool to eliminate static in the electronics, plastics, chemicals, printing, tex-tile, optical and other industries. Utilizing AC Square Wave Technology, the SCIONTM IN1200 delivers uniform streams of ionized air that quickly eliminates static charge.

The ionizing bar features a unique aerodynamic design that ionizes a local area without disruption laminar flow. The versatile bar can be adjusted for the optimal performance in a range of application with a simple remote control.

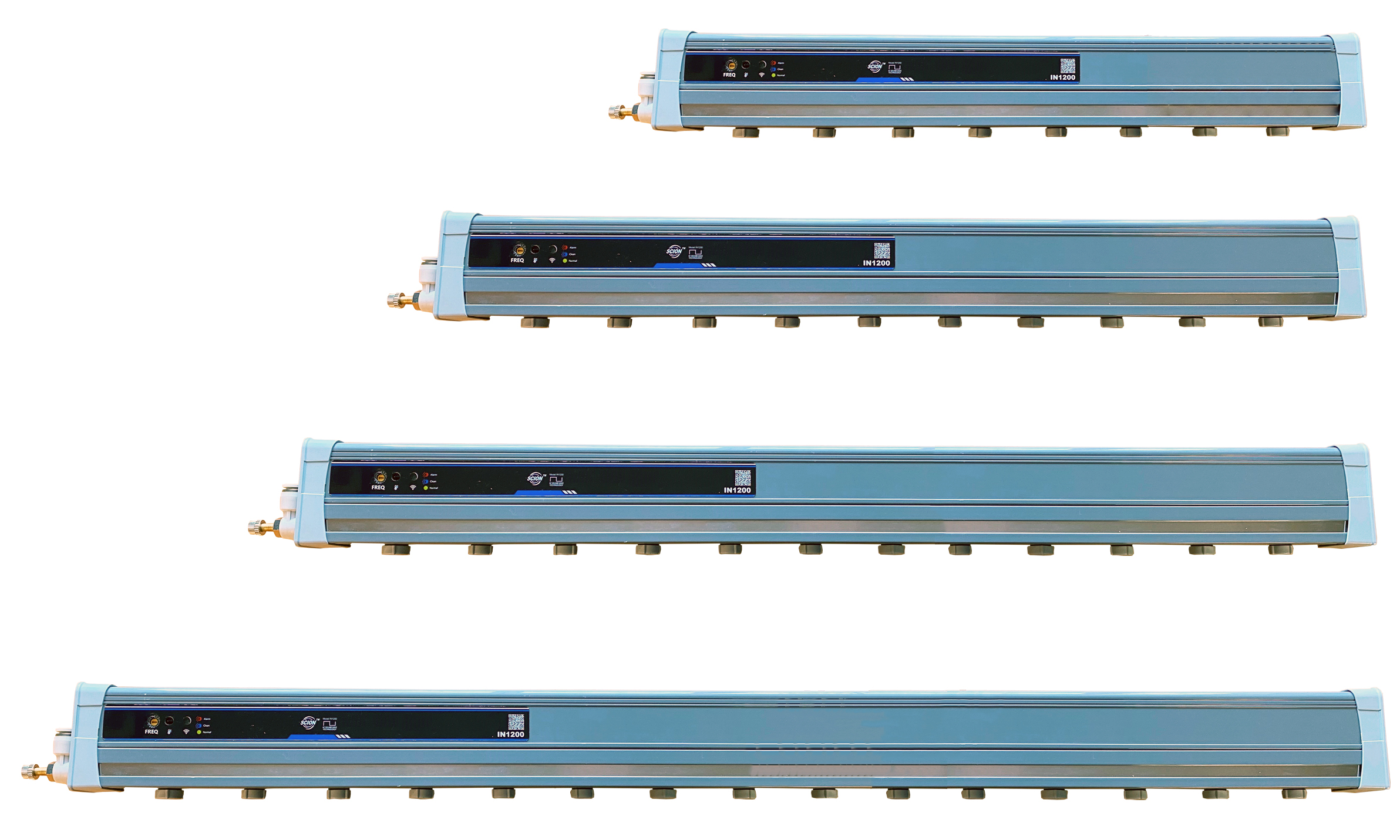

Available in four different lengths: 12”, 22”, 44” and 64”

AC Square Wave Technology  – AC stability with DC control

AC Square Wave ionization technology uses bipolar emitters which provide both positive and negative ions. This results in less stress on the emitter points, compared with Pulsed DC ionizing bars. Pulsed AC emitter points last longer and stay cleaner and provide more uniform ionization.

AC Square Wave ion bars are also more effective than traditional AC ionizers which are fixed at 60Hz and useful only in close target proximity or when combined with significant air-flow.

Benefits of the SCION IN1200

AC Square Wave ion bars are also more effective than traditional AC ionizers which are fixed at 60Hz and useful only in close target proximity or when combined with significant air-flow.

SCION bars offer duty cycle control to provide optimal ion balance and decay times in a wide variety of conditions. SCION bars allows polarity switching frequency (pulse width) control for optimizing balance and decay times in many environments. Longer switching frequencies allow the ionizer to be useful in low airflow conditions or when moving ions a longer distance.

Pulsed DC bars require frequent maintenance, cleaning. Positive points deform quickly, affecting balance. Negative points collect micro-debris that must be frequently cleaned to assure performance.

Mounting

The SCION IN1200 comes with simple to use E-Z mount clips that slide into grooves on the body of the ionizer. Use screws to secure the E-Z mount to the desired location.

Maintenance Friendly Ionizer

The SCION IN1200’s features patented molded emitter points that are easy to replace and service. The emitter point is enclosed in a plastic mold with threads that easily screws into the bar.

Verification and Calibration:
The SCION ionizer comes factory calibrated and with a calibration certificate.  Ionizer performance can be tested and verified with a charge plate monitor. Important tests to perform are positive and negative decay times and ion balance. It is recommended to test ionizer performance at least 1 per year.



Additional information

Weight7 lbs
Dimensions10 x 7 in
Coverage

2in.-80in.

Decay

Less Than 2secs at 12in.

Balance

0 +30 volts

Power Input

Cat-5 cable, 24 V adapter

Size

12″, 22″, 44″, 64″

Part Numbers

Part Numbers

ItemDescriptionSales Unit
IN1200-12SCION AC Square Wave Ion Bar, Tungsten Alloy Emitter, 12"Each
IN1200-22SCION AC Square Wave Ion Bar, Tungsten Alloy Emitter, 22"Each
IN1200-44SCION AC Square Wave Ion Bar, Tungsten Alloy Emitter, 44"Each
IN1200-64SCION AC Square Wave Ion Bar, Tungsten Alloy Emitter, 64"Each

We have resellers for this product but we have not posted website referal links at this time. You can contact us phone or by adding this item to your quote using the "Add to Quote" Button above. We will get you the information you need. Thanks!
